UVM的学习也告一段路，接下来进入验证的番外篇，也就是整儿八经的实战项目和对于行业的理解了，升华一下自己的眼界，同时也为以后的工作做些准备

1. MCDF设计更新

贴近工作场景，核心除了怎么更好的编，还有怎么更稳定的复用和迭代！！！

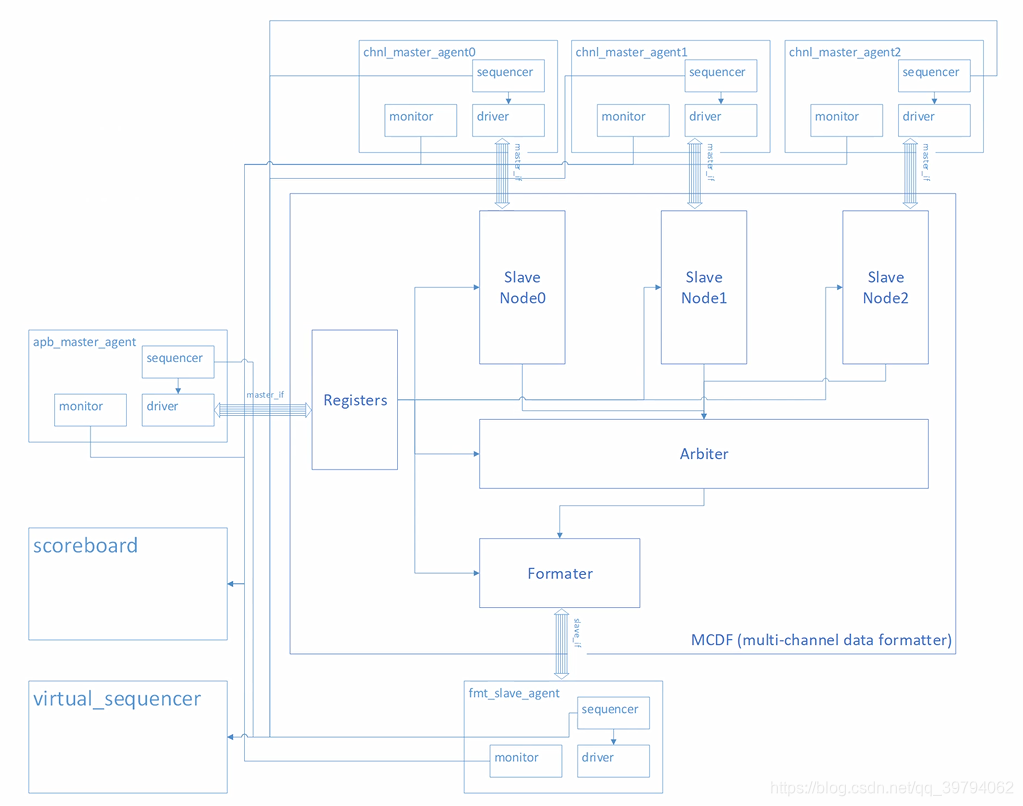

1.1 结构更新

channel的概念由slave node替代
slave node的接口发生变化
register的接口发生变化
formatter的接口发生变化

1.2 接口变化

slave node接口

DATA(31:0)：通道数据输入。（input）
DATA_PARITY：data数据的奇偶校验位。（input）
VALID：数据有效标志信号。（input）
WAIT：暂停接收。（类似于之前的ready信号）（output）
PARITY_ERR：slave node侧发现数据或者数据校验位出错。（output）

输入数据和奇偶校验位，输出看数据和奇偶校验是否匹配

register接口(AMBA APB标准总线)

PADDR(7:0)：地址。（input）
PWR：写标识。（input）
PEN：总线使能。（input）
PSEL：总线选择。（input）
PWDATA(31:0)：写入数据。（input）
PRDATA(31:0)：读出数据。（output）
PREADY：读写操作完成标识，可以用于延迟。（output）
PSLVERR：总线操作错误。（例如无效空间访问）（output）

formatter接口

PKG_VLD：数据包有效标识。（output）
PKG_FST：数据包首个数据标识符。（output）
PKG_DATA：数据输出端口。（output）
PKG_LST：数据包末尾数据标识符。（output）
PKG_RDY：接受侧准备就绪标识。（input）

1.3 时序更新

slave node接口时序

slave node接收从上行发来的数据，包括32bit的DATA和1bit的Parity。数据在VALID的指示下接收。
数据能否被接收取决于三个条件：数据是否有效(VALID)、内部FIFO的状态(Not Full)、数据有效性的校验结果(No Parity Error)。如果后两个条件不满足，WAIT端口置起，阻挡上行数据发送。
DATA_PARITY_ERR端口在第三个条件不满足时被置起（不像FIFO状态可以自动改变wait信号），这个信号也同时作为RO(ready only)状态位可以通过APB读出。而且它只能通过APB设置P_ERR_CLR寄存器来清除复位。

上图给出了6种传输情形：

#1：正常传输。
#2：VALID=0，上行数据未准备好，等待。
#3：数据校验错误，接收端置起WAIT将数据接收和输入挂起。
#4：错误标识位通过APB清除，数据准备重发。
#5：FIFO满，WAIT置起，数据发送被延期。
#6：FIFO恢复，重发数据成功。

问：为啥会出现输入的奇偶校验位DATA_PARITY在到达slaveNODE之后和数据对应不上的情况？

答：

如上图所示的1个4个bit的输入，每一位对应一个触发器，最低位由于延迟而导致建立时间不够从1变成了0，此时输入的奇偶校验和数据就对不上了

formatter数据包格式以及接口时序

之前的formatter：ch_id和length都是放在接口上的，现在都放在了头字里，且length不再是简单的4,8,16,32。而是1-256

注意这里的奇偶校验位parity是只检测所有的data还是包含了头字

寄存器更新

变化明显：

由一个32位寄存器决定对哪个slave进行操作，同样是一个寄存器决定所有通道的数据包长度
free_slot对应之前的状态寄存器，读取avalid
parity_err对应slave的奇偶校验检测的数据，通过寄存器parity_err_clr可以将其擦除

1.4 设计代码

slave_node

assign valid_o = !fifo_empty_s;

意味着只要slave的fifo不满，valid_o 信号就为1,

top_module中：assign req_vec_s = {slv3_valid_o_s,slv2_valid_o_s,slv1_valid_o_s,slv0_valid_o_s};

4个chnal的valid_o 信号构成了arbiter的4位输入，再结合arbiter的仲裁算法，从valid_o 信号为1的通道中选择1个和formater通信

端口：

module slave_node (
    input clk_i,
    input rst_n_i,
    // 和driver通信
    input [31:0] data_i,
    input data_p_i, // 输入的奇偶校验位
    input valid_i, // 数据有效信号
    input slv_en_i, // 使能信号
    output wait_o,
    output parity_err_o, // 内部奇偶校验和外部输入不匹配
	// 和fifo通信
    input fetch_i,
    output [31:0] data_o,
    output [ 5:0] freeslot_o, // 给到状态寄存器，表示fifo有多少空位
    output valid_o, //不为空就可以向下传

    // 和寄存器通信
    input parity_err_clr_i //将奇偶校验的输出拉低

);
reg     parity_err_r ;
wire    parity_err_s, wait_s, fifo_full_s, fifo_wr_s, fifo_rd_s, fifo_empty_s;

奇偶校验的处理

assign parity_err_s = valid_i && ^{data_i,data_p_i}; //data的异或结果和传入的奇偶校验位异或

always @ (posedge clk_i or negedge rst_n_i) begin : Parity_Err
    if (!rst_n_i) begin
       parity_err_r <= 1'b0;
    end
    else begin
       if (parity_err_s    ) parity_err_r <= 1'b1 ;
       if (parity_err_clr_i) parity_err_r <= 1'b0 ;
    end
end

assign parity_err_o = parity_err_r;
assign parity_err_o = parity_err_r;

// slave的写，读，idle三种状态的条件
assign wait_s       = fifo_full_s || parity_err_r;
assign fifo_wr_s    = valid_i && !wait_s && slv_en_i ; //为1时fifo执行写入
assign fifo_rd_s    = fetch_i && !fifo_empty_s; // 为1时从fifo读取

//决定写入时是否要等待
assign wait_o = !slv_en_i || wait_s;

sync_dff_fifo inst_fifo  (
    .clk_i(clk_i             ),
    .rst_n_i(rst_n_i         ),
    .data_i(data_i           ),
    .rd_i(fifo_rd_s          ),
    .wr_i(fifo_wr_s          ),
    .full_o(fifo_full_s      ),
    .empty_o(fifo_empty_s    ),
    .data_o(data_o           ),
    .freeslot_o(freeslot_o   )
);
// fifo不为空时就表示下行数据有效
assign valid_o = !fifo_empty_s;

endmodule

fifo模块的定义

module sync_dff_fifo (
    input clk_i,
    input rst_n_i,
    input [31:0] data_i,   //宽度32
    input rd_i,
    input wr_i,
    output full_o, //满时为1
    output empty_o, //空时为1
    output overflow_o, //溢出
    output [31:0] data_o,
    output [5:0] freeslot_o //给到状态寄存器，表示fifo有多少空位
);
parameter ADDR_W_C = 5; //fifo状态，对应状态寄存器
parameter DEPTH_C = 32; //fifo深度32
    //写地址
reg  [ADDR_W_C-1 :0]      wr_p_r ;
    //读地址
reg  [ADDR_W_C-1 :0]      rd_p_r ;
//定义32*32的数组，模拟fifo容器
reg  [31:0]               mem [DEPTH_C-1:0] ;
reg  [ADDR_W_C   :0]      freeslot_r ;
wire full_s, empty_s;
reg  overflow_r ;

    always @(posedge clk_i or negedge rst_n_i)
    begin
        if (!rst_n_i) begin
             freeslot_r <= DEPTH_C;
             rd_p_r     <= 0;
             wr_p_r     <= 0;
             overflow_r <= 1'b0;
         end else begin
             //满足读写条件，且数据有效位 为1，slave模块将读、写置1
             if(rd_i) rd_p_r     <= rd_p_r    +1 ;
             if(wr_i) wr_p_r     <= wr_p_r    +1 ;
             //数据读出，空槽+1
             if ( rd_i && ~wr_i && !empty_s ) begin
                freeslot_r <= freeslot_r+1 ;
             end
             //没满时数据写入，空槽-1，满了就设置
             if (~rd_i && wr_i ) begin
                if (~full_s) begin
                    freeslot_r <= freeslot_r-1 ; // cnt-- on only write
                end else begin
                    overflow_r <= 1'b1;
                end
             end
             if (wr_i) begin
                 mem[wr_p_r] <= data_i ;
             end
         end
    end
    assign full_s  = freeslot_r ==       0 ? 1 : 0  ;
    assign empty_s = freeslot_r == DEPTH_C ? 1 : 0  ;
    assign empty_o = empty_s  ;
    assign full_o  = full_s ;
    assign overflow_o = overflow_r;
    assign data_o  = mem[rd_p_r];
    assign freeslot_o = freeslot_r ;
endmodule

arbiter

冲裁器的仲裁行为规定：

4个通道中，从左到右的优先级依次降低，但这样设计会导致后面的通道很难有机会发送数据，如何解决这一问题？？

解决措施就是用cp_vec_r信号将请求信号进行左右拆分，只有左侧有请求信号或者只有右侧有的时候，就按照左侧的优先级更高；

如果左侧和右侧同时有请求的时候，选择右侧的最左边请求信号作为winner

注意：cp_vec_r信号拆分出的l_filter 和 r_filter（~l_filter）覆盖了4个bit，然后和slave_node过来的请求req信号做与运算，保证了只要有一个req，都能够选出winer
如果是常量的cp_vec_r，则拆分方式太过僵硬，优先级仍然是锁死的，可以考虑进行动态调整cp_vec_r信号，让4个通道的覆盖率尽可能相同

将cp信号和win信号挂钩，此时优先级就按照轮询的方式发生变化

如果命中了通道4，上一次的win信号为0001，则cp为0010，left为1100，right为0011

此时的优先级变为：通道3，通道4，通道1，通道2

如果命中了通道3：win信号变为0010，则cp为0100，left为1000，right为0111；

此时的优先级为：通道2，通道3，通道4，通道1

如果命中了通道2：win信号变为0100，则cp为1000，left为0000，right为1111；

此时的优先级为：通道1，通道2，通道3，通道4

如果命中了通道1：win信号变为1000，cp为0001，left为1110，right为1；

此时的优先级为：通道4，通道1，通道2，通道3

仲裁器的最终输出：沟通formater的slave通道winner

只有formater的trigger_i信号为1时，win_vec_o才会更新，更新值为trigger_i信号到来前的win_vec_s值。

即在trigger_i高电平信号到来前，优先级 & req信号得到win_vec_s；
在trigger_i高电平信号到来时，当前的win_vec_s就是沟通formater的通道，优先级会发生更改；

在下一次触发信号到来前，会不断按照新的优先级计算出新的winner。

module RR_arbiter(
    input clk_i,
    input rst_n_i,
    input [3:0] req_vec_i,
    output [3:0] win_vec_o,
    input trigger_i
);
reg  [3:0] cp_vec_r ;
wire [3:0] filter_L_s, filter_R_s, req_msb1_L_s, req_msb1_R_s, req_FL_L_s, req_FL_R_s, req_R_s, req_L_s;
wire [3:0] win_L_s   , win_R_s    ;
reg  [3:0] win_vec_s;
reg  [3:0] win_vec_r;
wire       req_all0_L_s, req_all0_R_s ;
//--------------------------------------------------------------------------------------------------------
// Generate filter L/R from cp_vec_r
// e.g. cp_vec_r : 0100
//      r_filter : 0111
//                      r3: c3
//                      r2: c3 | c2
//                      r1: c3 | c2 | c1
//                      r0: c3 | c2 | c1 | c0
//      l_filter : 1000 (not r_filter)
//--------------------------------------------------------------------------------------------------------
assign filter_L_s[3] = cp_vec_r[3];
assign filter_L_s[2] = cp_vec_r[3] || cp_vec_r[2] ;
assign filter_L_s[1] = cp_vec_r[3] || cp_vec_r[2] || cp_vec_r[1] ;
assign filter_L_s[0] = cp_vec_r[3] || cp_vec_r[2] || cp_vec_r[1] || cp_vec_r[0];

assign filter_R_s    = ~ filter_L_s ;
//--------------------------------------------------------------------------------------------------------
// generate L/R parts with filter
// e.g. req      = 001100
//      cp       = 000100
//      filter_L = 111000
//      filter_R = 000111
//      req_L    = 001000
//      req_R    = 000100
//--------------------------------------------------------------------------------------------------------
assign req_L_s = req_vec_i & filter_R_s ;
assign req_R_s = req_vec_i & filter_L_s ;
//--------------------------------------------------------------------------------------------------------
// fill 1s into req lower part (right is lower)
// e.g. req      = 001100
//      cp       = 000100
//      filter_L = 111000
//      filter_R = 000111
//      req_L    = 001000
//      req_R    = 000100
//      req_FL_L = 001111
//      req_FL_R = 000111
//--------------------------------------------------------------------------------------------------------
assign req_FL_L_s[3] = req_L_s[3];
assign req_FL_L_s[2] = req_L_s[3] || req_L_s[2] ;
assign req_FL_L_s[1] = req_L_s[3] || req_L_s[2] || req_L_s[1] ;
assign req_FL_L_s[0] = req_L_s[3] || req_L_s[2] || req_L_s[1] || req_L_s[0]  ;

assign req_FL_R_s[3] = req_R_s[3];
assign req_FL_R_s[2] = req_R_s[3] || req_R_s[2] ;
assign req_FL_R_s[1] = req_R_s[3] || req_R_s[2] || req_R_s[1] ;
assign req_FL_R_s[0] = req_R_s[3] || req_R_s[2] || req_R_s[1] || req_R_s[0]  ;
//--------------------------------------------------------------------------------------------------------
// Find the bit 1 from the Left most
// e.g. req          = 001100
//      cp           = 000100
//      filter_L     = 111000
//      filter_R     = 000111
//      req_L        = 001000
//      req_R        = 000100
//      req_FL_L     = 001111
//      req_FL_R     = 000111
//      req_MSB1_L   = 001000
//      req_MSB1_R   = 000100
//--------------------------------------------------------------------------------------------------------
assign req_msb1_L_s[3] = req_FL_L_s[3] ;
assign req_msb1_L_s[2] =   req_msb1_L_s[3]                                  ? 1'b0 : req_FL_L_s[2] ;
assign req_msb1_L_s[1] = |{req_msb1_L_s[3],req_msb1_L_s[2]}                 ? 1'b0 : req_FL_L_s[1] ;
assign req_msb1_L_s[0] = |{req_msb1_L_s[3],req_msb1_L_s[2],req_msb1_L_s[1]} ? 1'b0 : req_FL_L_s[0] ;

assign req_msb1_R_s[3] = req_FL_R_s[3] ;
assign req_msb1_R_s[2] =   req_msb1_R_s[3]                                 ? 1'b0 : req_FL_R_s[2] ;
assign req_msb1_R_s[1] = |{req_msb1_R_s[3],req_msb1_R_s[2]                }? 1'b0 : req_FL_R_s[1] ;
assign req_msb1_R_s[0] = |{req_msb1_R_s[3],req_msb1_R_s[2],req_msb1_R_s[1]}? 1'b0 : req_FL_R_s[0] ;
//最终的左右两边的最左侧信号
assign req_all0_L_s = ~(|req_msb1_L_s) ;
assign req_all0_R_s = ~(|req_msb1_R_s) ;

always @(req_all0_L_s or req_all0_R_s or req_msb1_R_s or req_msb1_L_s)
begin
    case ({req_all0_L_s, req_all0_R_s})
        2'b11: win_vec_s <= 4'b0000      ; // 没有请求进来
        2'b10: win_vec_s <= req_msb1_R_s ; // 只有右侧有请求，选择最左边的那个
        2'b01: win_vec_s <= req_msb1_L_s ; // 只有左侧有请求，选择最左边的那个
        2'b00: win_vec_s <= req_msb1_R_s ; // 左侧和右侧都有请求，选择右侧的最左边那个
    endcase
end

assign win_vec_o = win_vec_r;
always @(posedge clk_i or negedge rst_n_i)
begin
    if (!rst_n_i) begin
        cp_vec_r  <= 4'b1000;
        win_vec_r <= 4'b0000;
    end else begin
        if (trigger_i) begin
            cp_vec_r[0] <= win_vec_s[1];
            cp_vec_r[1] <= win_vec_s[2];
            cp_vec_r[2] <= win_vec_s[3];
            cp_vec_r[3] <= win_vec_s[0];
            win_vec_r <= win_vec_s;
        end

    end
end
endmodule

formater

对外端口:

module formater(
    input clk_i,
    input rst_n_i,
//4通道数据输入
    input     [31:0]           data_slv0_i,
    input     [31:0]           data_slv1_i,
    input     [31:0]           data_slv2_i,
    input     [31:0]           data_slv3_i,
//4通道配置寄存器输入 id+len（寄存器复位时输入默认值，可重新写入）
    input     [7:0]            id_slv0_i,
    input     [7:0]            id_slv1_i,
    input     [7:0]            id_slv2_i,
    input     [7:0]            id_slv3_i,

    input     [7:0]            len_slv0_i,
    input     [7:0]            len_slv1_i,
    input     [7:0]            len_slv2_i,
    input     [7:0]            len_slv3_i,
//起始通道输入（mcdf顶层可以看到，这里的每一位对应slave_node的valid_o）
    input     [3:0]            req_vec_i ,
    output    [3:0]            fetch_vec_o,
//arbiter通信
    input     [3:0]            win_vec_i,
    output                     trigger_start_o,
//下行数据，与formater的driver通信
    input                      rev_rdy_i, // driver给的ready信号
    output                     pkg_vld_o, // 打包好了信号
    output   [31:0]            pkg_dat_o, // 单次数据传送
    output                     pkg_fst_o, // 开始发送信号
    output                     pkg_lst_o  // 结束信号
);

3种输出（len+id；payload；parity）：

状态转换：

// 初始态
parameter [2:0] ST_RST     = 3'b000;
// 给arbiter发送请求信号
parameter [2:0] ST_Run_RR  = 3'b001;
// 收到reciver_ready信号后，发送header信号
parameter [2:0] ST_Header  = 3'b010;
// 收到reciver_ready信号后，发送len长度的数据
parameter [2:0] ST_Payload = 3'b011;
// 最后一个字发送奇偶校验
parameter [2:0] ST_Parity  = 3'b100;

reg [2:0] cur_st, nxt_st;
wire [3:0] win_req_vec_s      ;
wire win_req_s          ;
wire any_req_s          ;

assign win_req_vec_s = win_vec_i & req_vec_i ;  //4位slave发送的req和arbiter的仲裁win可能会错过，此时一样是4位0
assign win_req_s     = |win_req_vec_s ;
assign any_req_s     = |req_vec_i ;

always @(posedge clk_i or negedge rst_n_i)
begin
    if (!rst_n_i) cur_st <= ST_RST    ;
    else          cur_st <= nxt_st    ;

end
always @(*) begin
    nxt_st <= cur_st;
    case (cur_st)
        //slave 只要向formater发送4位req有1位为1，formater应向arbiter发送triger信号
        ST_RST     : if (                          any_req_s) nxt_st <= ST_Run_RR   ;
        //只要4位仲裁win信号和4位req信号匹配，formater应进入header状态，将发送header信息（组合逻辑已经得到了id和len）
        ST_Run_RR  : if (                          win_req_s) nxt_st <= ST_Header   ;
        //接收到recive信号，正式进入传输阶段
        ST_Header  : if (             rev_rdy_i && win_req_s) nxt_st <= ST_Payload  ;
        //
        ST_Payload : if (pkg_lst_s && rev_rdy_i && win_req_s) nxt_st <= ST_Parity   ;
        ST_Parity  : if (             rev_rdy_i             ) nxt_st <= ST_Run_RR   ;
    endcase
end

仲裁结果：(还可以通过case分支语句)

//Select winner for data/id/len
assign data_slv0_win_s = win_vec_i[0] ? data_slv0_i: 0 ;
assign data_slv1_win_s = win_vec_i[1] ? data_slv1_i: 0 ;
assign data_slv2_win_s = win_vec_i[2] ? data_slv2_i: 0 ;
assign data_slv3_win_s = win_vec_i[3] ? data_slv3_i: 0 ;
assign data_win_s      = data_slv0_win_s | data_slv1_win_s | data_slv2_win_s | data_slv3_win_s ;

assign id_slv0_win_s   = win_vec_i[0] ? id_slv0_i  : 0 ;
assign id_slv1_win_s   = win_vec_i[1] ? id_slv1_i  : 0 ;
assign id_slv2_win_s   = win_vec_i[2] ? id_slv2_i  : 0 ;
assign id_slv3_win_s   = win_vec_i[3] ? id_slv3_i  : 0 ;
assign id_win_s        = id_slv0_win_s | id_slv1_win_s | id_slv2_win_s | id_slv3_win_s  ;

assign len_slv0_win_s  = win_vec_i[0] ? len_slv0_i : 0 ;
assign len_slv1_win_s  = win_vec_i[1] ? len_slv1_i : 0 ;
assign len_slv2_win_s  = win_vec_i[2] ? len_slv2_i : 0 ;
assign len_slv3_win_s  = win_vec_i[3] ? len_slv3_i : 0 ;
assign len_win_s       = len_slv0_win_s | len_slv1_win_s | len_slv2_win_s | len_slv3_win_s ;

当前状态

wire is_st_run_rr_s     ;
wire is_st_header_s     ;
wire is_st_payload_s    ;
wire is_st_parity_s     ;

wire send_header_s      ;
wire send_payload_s     ;
wire send_parity_s      ;
wire pkg_lst_s          ;
//驱动发送
assign is_st_run_rr_s     = (cur_st==ST_Run_RR )? 1'b1 : 1'b0 ;
//头信息发送
assign is_st_header_s     = (cur_st==ST_Header )? 1'b1 : 1'b0 ;
//数据信息发送
assign is_st_payload_s    = (cur_st==ST_Payload)? 1'b1 : 1'b0 ;
//奇偶校验发送
assign is_st_parity_s     = (cur_st==ST_Parity )? 1'b1 : 1'b0 ;

assign send_header_s      = is_st_header_s   && rev_rdy_i ;
assign send_payload_s     = is_st_payload_s  && rev_rdy_i && win_req_s ;
assign send_parity_s      = is_st_parity_s   && rev_rdy_i ;assign trigger_start_o    = is_st_run_rr_s ;
assign pkg_lst_s          = ~|(len_cnt_r)    ;

对slave_node的输出：(fetch)

1
2
3

wire [3:0]  fetch_vec_s ;
assign fetch_vec_s = {4{rev_rdy_i && is_st_payload_s }} & win_vec_i ;
assign fetch_vec_o = fetch_vec_s ;

当前formater处于is_st_payload_s，且

wire [31:0] data_slv0_win_s ;
wire [31:0] data_slv1_win_s ;
wire [31:0] data_slv2_win_s ;
wire [31:0] data_slv3_win_s ;
wire [31:0] data_win_s      ;

wire [7:0] id_slv0_win_s   ;
wire [7:0] id_slv1_win_s   ;
wire [7:0] id_slv2_win_s   ;
wire [7:0] id_slv3_win_s   ;
wire [7:0] id_win_s        ;

wire [7:0] len_slv0_win_s  ;
wire [7:0] len_slv1_win_s  ;
wire [7:0] len_slv2_win_s  ;
wire [7:0] len_slv3_win_s  ;
wire [7:0] len_win_s       ;



wire pkg_vld_s          ;
reg  [31:0] tx_d_s      ;
reg  [31:0] parity_r    ;
reg  [7:0]  len_cnt_r   ;

always @(*)
begin
    tx_d_s   <= 0;
    // Header <= ID + LEN
    if (is_st_header_s) begin
        tx_d_s   <= {id_win_s, len_win_s,16'h0000};
    end
    // Payload
    if (is_st_payload_s) begin
        tx_d_s   <= data_win_s ;
    end
    // Parity
    if (is_st_parity_s) begin
        tx_d_s   <= parity_r;
    end

end


//--------------------------------------------------------------------------------------------------------
//Parity Gen
//--------------------------------------------------------------------------------------------------------
always @(posedge clk_i or negedge rst_n_i)
begin
    if (~rst_n_i) begin
        parity_r <= 0 ;
        len_cnt_r <= 0 ;
    end else begin
        // Load the 1st data in buffer
        if (send_header_s) begin
            parity_r  <= {id_win_s, len_win_s,16'h0000};
            len_cnt_r <= len_win_s ;
        end

        // XOR payload
        if (send_payload_s) begin
            parity_r <= data_win_s ^ parity_r ;
            len_cnt_r<= len_cnt_r - 1;
        end

        //
        if (send_parity_s) begin
            parity_r  <= 0 ;
            len_cnt_r <= 0 ;
        end
    end
end

// fetch asserted when
// 1. downlink's recieve_ready is asserted &
// 2. selected fifo data is valid


//--------------------------------------------------------------------------------------------------------
assign pkg_dat_o = tx_d_s ;
assign pkg_fst_o = send_header_s  ;
assign pkg_lst_o = send_parity_s  ;
//---------------------------------------
// pkg_vld_o asserted when
// a. header phase
// b. send payload phase and payload is valid
// c. parity phase
assign pkg_vld_s = is_st_header_s || (is_st_payload_s && win_req_s) || is_st_parity_s ;
assign pkg_vld_o = pkg_vld_s ;
endmodule

2. UVM验证环境更新策略

2.1 组件更新

在这里插入图片描述

channel master agent的driver和monitor由于总线接口信号和时序的变化，需要更新。
register master agent由于总线更新为APB，需要开发完整的APB master agent。
formatter slave agent由于总线信号和时序的变化，也需要进行更新。
寄存器列表发生了变化，因此也需要进行寄存器模块的更新。
由于寄存器访问VIP发生变化，也需要对寄存器模型与总线VIP桥接转换的adapter进行更新。

2.2 环境更新

与MCDF连接的各个接口信号需要重新定义。
在顶层testbench，对于各个接口信号的连接也需要更新。

2.3 测试更新

在尽量保证验证环境复用和测试用例复用的情况下，需要考虑如何复用原有的测试。原有的测试部分可以分为：do_config()，即寄存器配置部分。do_formatter()，即formatter slave agent行为模型的配置。do_data()，即发送数据。
可以尽量保证do_formatter()和do_data()的测试代码部分保持不变，而只修改上层对寄存器的配置部分。
寄存器的配置之所以需要修改，是因为寄存器模型本身发生了变化，而与访问寄存器总线IP发生变化没有直接关系。

总结：
更新：寄存器模型、总线、adapter、do_config()、环境。

2.4 环境复用和序列复用

环境复用：

保证顶层环境的稳定
尽量减少底层组件的更新

在更新底层组件的时候，也要考虑如何实施，从而保证顶层环境的稳定。

序列复用：

保证底层序列的稳定
尽量减少底层序列的更新

尽量让底层序列的更新尽可能少的影响顶层序列

3. VIP

3.1 APB的VIP

transcation 和 sequence

apb_transfer.sv

地址（一个PADDR信号），数据（1个PWDATA/PRDATA信号），和总线的三种操作状态(三个控制信号决定了状态：PSEL, PENABLE, PWRITE)

`ifndef APB_TRANSFER_SV
`define APB_TRANSFER_SV

typedef enum {IDLE, WRITE, READ } apb_trans_kind;

class apb_transfer extends uvm_sequence_item;
  // USER: Add transaction fields

  rand bit [31:0]      addr;
  rand bit [31:0]      data;
  rand apb_trans_kind  trans_kind;
  rand int idle_cycles;

  constraint cstr{
    soft idle_cycles == 1;
  };

   // USER: Add constraint blocks
  `uvm_object_utils_begin(apb_transfer)
    `uvm_field_enum     (apb_trans_kind, trans_kind, UVM_ALL_ON)
    // USER: Register fields here
    `uvm_field_int      (addr, UVM_ALL_ON)
    `uvm_field_int      (data, UVM_ALL_ON)
    `uvm_field_int      (idle_cycles, UVM_ALL_ON)
  `uvm_object_utils_end

  // new - constructor
  function new (string name = "apb_transfer_inst");
    super.new(name);
  endfunction : new
endclass : apb_transfer

`endif // APB_TRANSFER_SV

底层apb_master_sequence

apb_master_single_write_sequence

virtual task body();
  `uvm_info(get_type_name(),"Starting sequence", UVM_HIGH)
 `uvm_do_with(req, {trans_kind == WRITE; addr == local::addr; data == local::data;})
  get_response(rsp);
  `uvm_info(get_type_name(),$psprintf("Done sequence: %s",req.convert2string()), UVM_HIGH)
endtask: body

apb_master_single_read_sequence

virtual task body();
  `uvm_info(get_type_name(),"Starting sequence", UVM_HIGH)
 `uvm_do_with(req, {trans_kind == READ; addr == local::addr;})
  get_response(rsp);
  data = rsp.data;
  `uvm_info(get_type_name(),$psprintf("Done sequence: %s",req.convert2string()), UVM_HIGH)
endtask: body

apb_master_write_read_sequence

写完就读，设置cycle为0，写和读用的地址也是同一个

rand int           idle_cycles;
constraint cstr{
  idle_cycles == 0;
}
virtual task body();
  `uvm_info(get_type_name(),"Starting sequence", UVM_HIGH)
 `uvm_do_with(req,  {trans_kind == WRITE;
                      addr == local::addr;
                      data == local::data;
                      idle_cycles == local::idle_cycles;
                     })
  get_response(rsp);
  `uvm_do_with(req, {trans_kind == READ; addr == local::addr;})
  get_response(rsp);
  data = rsp.data;
  `uvm_info(get_type_name(),$psprintf("Done sequence: %s",req.convert2string()), UVM_HIGH)
endtask: body

apb_master_burst_write_sequence

连续写：数据改为数组

随机化：给一个连增的地址写入连增的数据

rand bit [31:0]      data[];
constraint cstr{
    soft data.size() inside {4, 8, 16, 32};
    foreach(data[i]) soft data[i] == addr + (i << 2);
  }

  virtual task body();
    `uvm_info(get_type_name(),"Starting sequence", UVM_HIGH)
    foreach(data[i]) begin
	    `uvm_do_with(req, {trans_kind == WRITE;
                         addr == local::addr + (i<<2);
                         data == local::data[i];
                         idle_cycles == 0;
                        })
      get_response(rsp);
    end
    `uvm_do_with(req, {trans_kind == IDLE;})
    get_response(rsp);
    `uvm_info(get_type_name(),$psprintf("Done sequence: %s",req.convert2string()), UVM_HIGH)
  endtask: body

apb_master_burst_read_sequence

连续读，将读回的结果放入data数组

rand bit [31:0]      addr;
  rand bit [31:0]      data[];
  constraint cstr{
    soft data.size() inside {4, 8, 16, 32};
  }
  `uvm_object_utils(apb_master_burst_read_sequence)
  function new(string name="");
    super.new(name);
  endfunction : new

  virtual task body();
    `uvm_info(get_type_name(),"Starting sequence", UVM_HIGH)
    foreach(data[i]) begin
	    `uvm_do_with(req, {trans_kind == READ;
                         addr == local::addr + (i<<2);
                         idle_cycles == 0;
                        })
      get_response(rsp);
      data[i] = rsp.data;
    end
    `uvm_do_with(req, {trans_kind == IDLE;})
    get_response(rsp);
    `uvm_info(get_type_name(),$psprintf("Done sequence: %s",req.convert2string()), UVM_HIGH)
  endtask: body

apb_test

test主要就是在build_phase中进行创建，让环境准备好；在run_phase中进行挂载，让系统跑起来~~

test cases真正的核心在于sequences

apb_base_test_sequence

check_mem_data()方法原理：(参考上面的结构图)

关联数组mem：bit[31:0] 对应32位地址总线

用来master和slave之间的数据比对，test和slave中都有一个mem，master通过接口发送数据给slave，slave中的mem和test中的mem都会存储这个数据，等从slave读回数据时，就可以和test中mem里面的数据进行比较。

class apb_base_test_sequence extends uvm_sequence #(apb_transfer);
  bit[31:0] mem[bit[31:0]];
  `uvm_object_utils(apb_base_test_sequence)
  function new(string name="");
    super.new(name);
  endfunction : new
  function bit check_mem_data(bit[31:0] addr, bit[31:0] data);
    if(mem.exists(addr)) begin
      if(data != mem[addr]) begin
        `uvm_error("CMPDATA", $sformatf("addr 32'h%8x, READ DATA expected 32'h%8x != actual 32'h%8x", addr, mem[addr], data))
        return 0;
      end
      else begin
        `uvm_info("CMPDATA", $sformatf("addr 32'h%8x, READ DATA 32'h%8x comparing success!", addr, data), UVM_LOW)
        return 1;
      end
    end
    else begin
      if(data != 0) begin
        `uvm_error("CMPDATA", $sformatf("addr 32'h%8x, READ DATA expected 32'h00000000 != actual 32'h%8x", addr, data))
        return 0;
      end
      else begin
        `uvm_info("CMPDATA", $sformatf("addr 32'h%8x, READ DATA 32'h%8x comparing success!", addr, data), UVM_LOW)
        return 1;
      end
    end
  endfunction: check_mem_data

  task wait_reset_release();
    @(negedge apb_tb.rstn);
    @(posedge apb_tb.rstn);
  endtask

  task wait_cycles(int n);
    repeat(n) @(posedge apb_tb.clk);
  endtask

  function bit[31:0] get_rand_addr();
    bit[31:0] addr;
    void'(std::randomize(addr) with {addr[31:12] == 0; addr[1:0] == 0;});
    return addr;
  endfunction
endclass

`apb_single_transaction_sequence`类

可以看到base_test的sequence没有body（）方法，也就是激励的挂载全部交由子类进行

task body();
  bit[31:0] addr;
  this.wait_reset_release();
  this.wait_cycles(10);

  // TEST continous write transaction：
  `uvm_info(get_type_name(), "TEST continous write transaction...", UVM_LOW)
  repeat(test_num) begin
    addr = this.get_rand_addr();
    `uvm_do_with(single_write_seq, {addr == local::addr; data == local::addr;})
    mem[addr] = addr;
  end

  // TEST continous read transaction
  `uvm_info(get_type_name(), "TEST continous read transaction...", UVM_LOW)
  repeat(test_num) begin
    addr = this.get_rand_addr();
    `uvm_do_with(single_read_seq, {addr == local::addr;})
    void'(this.check_mem_data(addr, single_read_seq.data));
  end

  // TEST read transaction after write transaction
  `uvm_info(get_type_name(), "TEST read transaction after write transaction...", UVM_LOW)
  repeat(test_num) begin
    addr = this.get_rand_addr();
    `uvm_do_with(single_write_seq, {addr == local::addr; data == local::addr;})
    mem[addr] = addr;
    `uvm_do_with(single_read_seq, {addr == local::addr;})
    void'(this.check_mem_data(addr, single_read_seq.data));
  end


  // TEST read transaction immediately after write transaction
  `uvm_info(get_type_name(), "TEST read transaction immediately after write transaction", UVM_LOW)
  repeat(test_num) begin
    addr = this.get_rand_addr();
    `uvm_do_with(write_read_seq, {addr == local::addr; data == local::addr;})
    mem[addr] = addr;
    void'(this.check_mem_data(addr, write_read_seq.data));
  end

  this.wait_cycles(10);
endtask

3.2 APB协议的断言检查和断言覆盖率

问：为啥这里的读、写都是用##2的，中间空的一拍呢？

APB总线的时序，中间空了一拍setup的状态。

以连续写为例：相当于PENABLE为1时，写入数据。下一拍：PSEL和PWRITE保持，PENABLE为0，此时为setup状态，也就是开启了一次新的传输，PWDATA也在此时建立。再下一拍：PENABLE拉高，数据写入。

即一次写或读需要两拍时钟才能完成：见断言覆盖率-1

断言检查：

所有property都在interface中定义，先看一下interface中总线信号的定义

interface apb_if (input clk, input rstn);

  logic [31:0] paddr;
  logic        pwrite;
  logic        psel;
  logic        penable;
  logic [31:0] pwdata;
  logic [31:0] prdata;

1.在PSEL为高时，PADDR总线不可以为X值

注意系统boolean方法：$isunknown()：信号为x则返回1

property p_paddr_no_x;
    @(posedge clk) psel |-> !$isunknown(paddr);
endproperty: p_paddr_no_x
assert property(p_paddr_no_x) else `uvm_error("ASSERT", "PADDR is unknown when PSEL is high")

2.在PSEL拉高的下一个周期，PENABLE也应该拉高

注意系统boolean方法：$rose()：上一拍的值为0，这一拍的值为1，则返回1

property p_psel_rose_next_cycle_penable_rise;
  @(posedge clk) $rose(psel) |=> $rose(penable);
endproperty: p_psel_rose_next_cycle_penable_rise
assert property(p_psel_rose_next_cycle_penable_rise) else `uvm_error("ASSERT", "PENABLE not rose after 1 cycle PSEL rose")

3.在PENABLE拉高的下一个周期，PENABLE应该拉低

注意系统boolean方法：$fell()：上一拍的值为1，这一拍的值为0，则返回1

property p_penable_rose_next_cycle_fall;
  @(posedge clk) $rose(penable) |=> $fell(penable);
endproperty: p_penable_rose_next_cycle_fall
assert property(p_penable_rose_next_cycle_fall) else `uvm_error("ASSERT", "PENABLE not fall after 1 cycle PENABLE rose")

4.在PSEL和PWRITE同时保持为高的阶段，PWDATA需要保持

注意系统boolean方法：$stable()：信号在时钟上升沿保持不变（也就是第二拍的数据和第一拍保持一样）则返回1

property p_pwdata_stable_during_trans_phase;
  @(posedge clk) ((psel && !penable) ##1 (psel && penable)) |-> $stable(pwdata);
endproperty: p_pwdata_stable_during_trans_phase
assert property(p_pwdata_stable_during_trans_phase) else `uvm_error("ASSERT", "PWDATA not stable during transaction phase")

5.下一次传输开始前（如何判断下一次传播啥时候开始），PADDR和PWRITE信号应该保持不变

当前者为某个区间取值，例如[1:5]，如果没有|->或者|=>时，则匹配一次即可进入下一阶段或者断言成功，但是如果有|->或者|=>时，则必须保证所有情况都满足才能进入下一阶段，否则卡死。而first_match的作用就是在此时，使得只要出现一种满足情况即可进入下一阶段。

$rose(penable)：第一次数据传输，记录此时PADDR和PWRITE

(psel && !penable)[=1]：第二次setup，记录上一拍的。。。看一下时序图，在setup的这一拍传入新的PADDR

property p_paddr_stable_until_next_trans;       //PADDR保持不变
  logic[31:0] addr1, addr2;
  @(posedge clk) first_match(($rose(penable),addr1=paddr) ##1 ((psel && !penable)[=1],addr2=$past(paddr))) |-> addr1 == addr2;
endproperty: p_paddr_stable_until_next_trans
assert property(p_paddr_stable_until_next_trans) else `uvm_error("ASSERT", "PADDR not stable until next transaction start")

property p_pwrite_stable_until_next_trans;     //PWRITE保持不变
  logic pwrite1, pwrite2;
  @(posedge clk) first_match(($rose(penable),pwrite1=pwrite) ##1 ((psel && !penable)[=1],pwrite2=$past(pwrite))) |-> pwrite1 == pwrite2;
endproperty: p_pwrite_stable_until_next_trans
assert property(p_pwrite_stable_until_next_trans) else `uvm_error("ASSERT", "PWRITE not stable until next transaction start")

6.在PENABLE拉高的同一个周期，如果是读信号，PRDATA应该发生变化

property p_prdata_available_once_penable_rose;
  @(posedge clk) $rose(penable) && !pwrite |-> !$stable(prdata);
endproperty: p_prdata_available_once_penable_rose
assert property(p_prdata_available_once_penable_rose) else `uvm_error("ASSERT", "PRDATA not available once PENABLE rose")

7.断言检查的控制

只有做过复位之后才将断言检查打开

initial begin: assertion_control
  fork
    forever begin
      wait(rstn == 0);
      $assertoff();
      wait(rstn == 1);
      $asserton();
    end
  join_none
end

断言覆盖率

1.写操作时，分别发生连续写（只需要覆盖到PSEL连续4拍为高，同时PWRITE连续4拍为高才能保证，PENABLE和PSEL的关系在上面的断言检查中已经检查过了，不用重复定义）和非连续写（PSEL信号每两拍就得拉下来至少1拍，PWRITE无所谓）

注意：

操作符throughout必须连接一个表达式和一个序列即req throughout seq，含义是在seq匹配起始到结束期间，req都必须成立。

[*2]：连续两拍

[=1]：非连续的1拍，前面（0-n）拍为！penable，后面（0-n）拍为！penable

不连续的写了两次
连续的写了两次

property p_write_during_nonburst_trans;    //非连续写
  @(posedge clk) $rose(penable) |-> pwrite throughout (##1 (!penable)[*2] ##1 penable[=1]);
endproperty: p_write_during_nonburst_trans
cover property(p_write_during_nonburst_trans);

property p_write_during_burst_trans;       //连续写
  @(posedge clk) $rose(penable) |-> pwrite throughout (##2 penable);
endproperty: p_write_during_burst_trans
cover property(p_write_during_burst_trans);

2.对同一个地址先做写操作，再不间隔做读操作

要求读的地址和写地址保持相同，

property p_write_read_burst_trans;
  logic[31:0] addr;
  @(posedge clk) ($rose(penable) && pwrite, addr=paddr) |-> (##2 ($rose(penable) && !pwrite && addr==paddr));
endproperty: p_write_read_burst_trans
cover property(p_write_read_burst_trans);

3.对同一个地址做连续两次写操作，再从中读取数据

property p_write_twice_read_burst_trans;
  logic[31:0] addr;
  @(posedge clk) ($rose(penable) && pwrite, addr=paddr) |-> (##2 ($rose(penable) && pwrite && addr==paddr) ##2 ($rose(penable) && !pwrite && addr==paddr) );
endproperty: p_write_twice_read_burst_trans
cover property(p_write_twice_read_burst_trans);

4.读操作时，分别发生连续读和不连续读

property p_read_during_nonburst_trans;     //直接套用不连续写
  @(posedge clk) $rose(penable) |-> !pwrite throughout (##1 (!penable)[*2] ##1 penable[=1]);
endproperty: p_read_during_nonburst_trans
cover property(p_read_during_nonburst_trans);

property p_read_during_burst_trans;       //直接套用连续写
  @(posedge clk) $rose(penable) |-> !pwrite throughout (##2 penable);
endproperty: p_read_during_burst_trans
cover property(p_read_during_burst_trans);

5.发生对同一个地址的读操作再不间隔做写操作，再不间隔做读操作

 property p_read_write_read_burst_trans;
   logic[31:0] addr;
@(posedge clk) ($rose(penable) && !pwrite, addr=paddr) |-> (##2 ($rose(penable) && pwrite && addr==paddr) ##2 ($rose(penable) && !pwrite && addr==paddr) );
 endproperty: p_read_write_read_burst_trans
 cover property(p_read_write_read_burst_trans);

仿真命令

1	vsim -novopt -sv_seed random -assertdebug -assertcover -classdebug +UVM_TESTNAME=apb_single_transaction_test -l assertion.log work.apb_tb

执行结果

assertion

可以看到定义的7个并行断言

pass count：真正通过property的，而不是空成功的（前置和后置seq都满足）
active count：当前后台有没有正在做检查的assertion
failure count：失败的property
peak memory：峰值的memory，当前a满足，就需要开个线程去评估b，如果下一拍还满足就再开一个线程，当覆盖多个周期时，线程的累计会消耗大量资源

日志

可以直观的看到错误的数量，这也是为什么选择用`uvm_error进行打印！！！

assertion波形

断言检查的第4项：property p_pwdata_stable_during_trans_phase;

蓝点代表start：进入assert；黄点代表pass：在第二拍验证通过

covergroup

功能覆盖率

cover directives

断言覆盖率

4. 项目验证代码

大概思路：

VIP提供了沟通寄存器的master_agent，此时只需要建立寄存器模型，由adapter给agent的sequencer发送item

要思考一下寄存器的激励发送方式

寄存器模型（python生成）

slv_en_reg（4位，对应每个寄存器的使能）

覆盖率的收集调用方法是固定搭配：sample（）方法+sample_values（）方法；

package mcdf_rgm_pkg;
  import uvm_pkg::*;
  `include "uvm_macros.svh"
  class slv_en_reg extends uvm_reg;
    `uvm_object_utils(slv_en_reg)
    rand uvm_reg_field en;
    rand uvm_reg_field reserved;
    covergroup value_cg;
      option.per_instance = 1;
      en: coverpoint en.value[3:0];
      reserved: coverpoint reserved.value[27:0];
    endgroup
    function new(string name = "slv_en_reg");
      super.new(name, 32, UVM_CVR_ALL);
      void'(set_coverage(UVM_CVR_FIELD_VALS));
      if(has_coverage(UVM_CVR_FIELD_VALS)) begin
        value_cg = new();
      end
    endfunction
    virtual function void build();
      en = uvm_reg_field::type_id::create("en");
      reserved = uvm_reg_field::type_id::create("reserved");
      en.configure(this, 4, 0, "RW", 0, 'h0, 1, 1, 0);
      reserved.configure(this, 28, 4, "RO", 0, 'h0, 1, 0, 0);
    endfunction
    function void sample(
      uvm_reg_data_t data,
      uvm_reg_data_t byte_en,
      bit            is_read,
      uvm_reg_map    map
    );
      super.sample(data, byte_en, is_read, map);
      sample_values();
    endfunction
    function void sample_values();
      super.sample_values();
      if (get_coverage(UVM_CVR_FIELD_VALS)) begin
        value_cg.sample();
      end
    endfunction
  endclass

parity_err_clr_reg（4位，对应4个奇偶校验结果的状态寄存器，为1时擦除）

class parity_err_clr_reg extends uvm_reg;
    `uvm_object_utils(parity_err_clr_reg)
    rand uvm_reg_field err_clr;
    rand uvm_reg_field reserved;
    covergroup value_cg;
      option.per_instance = 1;
      err_clr: coverpoint err_clr.value[3:0];
      reserved: coverpoint reserved.value[27:0];
    endgroup
    function new(string name = "parity_err_clr_reg");
      super.new(name, 32, UVM_CVR_ALL);
      void'(set_coverage(UVM_CVR_FIELD_VALS));
      if(has_coverage(UVM_CVR_FIELD_VALS)) begin
        value_cg = new();
      end
    endfunction
    virtual function void build();
      err_clr = uvm_reg_field::type_id::create("err_clr");
      reserved = uvm_reg_field::type_id::create("reserved");
      err_clr.configure(this, 4, 0, "RW", 0, 'h0, 1, 1, 0);
      reserved.configure(this, 28, 4, "RO", 0, 'h0, 1, 0, 0);
    endfunction
endclass

slv_id_reg（32位，每个字节对应一个通道的ID，给到fomater）

class slv_id_reg extends uvm_reg;
    `uvm_object_utils(slv_id_reg)
    rand uvm_reg_field slv0_id;
    rand uvm_reg_field slv1_id;
    rand uvm_reg_field slv2_id;
    rand uvm_reg_field slv3_id;
    covergroup value_cg;
      option.per_instance = 1;
      slv0_id: coverpoint slv0_id.value[7:0];
      slv1_id: coverpoint slv1_id.value[7:0];
      slv2_id: coverpoint slv2_id.value[7:0];
      slv3_id: coverpoint slv3_id.value[7:0];
    endgroup
    function new(string name = "slv_id_reg");
      super.new(name, 32, UVM_CVR_ALL);
      void'(set_coverage(UVM_CVR_FIELD_VALS));
      if(has_coverage(UVM_CVR_FIELD_VALS)) begin
        value_cg = new();
      end
    endfunction
    virtual function void build();
      slv0_id = uvm_reg_field::type_id::create("slv0_id");
      slv1_id = uvm_reg_field::type_id::create("slv1_id");
      slv2_id = uvm_reg_field::type_id::create("slv2_id");
      slv3_id = uvm_reg_field::type_id::create("slv3_id");
      slv0_id.configure(this, 8, 0, "RW", 0, 'h0, 1, 1, 0);
      slv1_id.configure(this, 8, 8, "RW", 0, 'h1, 1, 1, 0);
      slv2_id.configure(this, 8, 16, "RW", 0, 'h2, 1, 1, 0);
      slv3_id.configure(this, 8, 24, "RW", 0, 'h3, 1, 1, 0);
    endfunction
endclass

slv_len_reg(32位，每个字节对应一个通道的打包数据长度，给formater)

class slv_len_reg extends uvm_reg;
  `uvm_object_utils(slv_len_reg)
  rand uvm_reg_field slv0_len;
  rand uvm_reg_field slv1_len;
  rand uvm_reg_field slv2_len;
  rand uvm_reg_field slv3_len;
  covergroup value_cg;
    option.per_instance = 1;
    slv0_len: coverpoint slv0_len.value[7:0];
    slv1_len: coverpoint slv1_len.value[7:0];
    slv2_len: coverpoint slv2_len.value[7:0];
    slv3_len: coverpoint slv3_len.value[7:0];
  endgroup
  function new(string name = "slv_len_reg");
    super.new(name, 32, UVM_CVR_ALL);
    void'(set_coverage(UVM_CVR_FIELD_VALS));
    if(has_coverage(UVM_CVR_FIELD_VALS)) begin
      value_cg = new();
    end
  endfunction
  virtual function void build();
    slv0_len = uvm_reg_field::type_id::create("slv0_len");
    slv1_len = uvm_reg_field::type_id::create("slv1_len");
    slv2_len = uvm_reg_field::type_id::create("slv2_len");
    slv3_len = uvm_reg_field::type_id::create("slv3_len");
    slv0_len.configure(this, 8, 0, "RW", 0, 'h0, 1, 1, 0);
    slv1_len.configure(this, 8, 8, "RW", 0, 'h0, 1, 1, 0);
    slv2_len.configure(this, 8, 16, "RW", 0, 'h0, 1, 1, 0);
    slv3_len.configure(this, 8, 24, "RW", 0, 'h0, 1, 1, 0);
  endfunction
endclass

slv_free_slot_reg（6位状态寄存器，复位值为32，记录slave_fifo的当前空余位）

class slv0_free_slot_reg extends uvm_reg;
    `uvm_object_utils(slv0_free_slot_reg)
    rand uvm_reg_field free_slot;
    rand uvm_reg_field reserved;
    covergroup value_cg;
      option.per_instance = 1;
      free_slot: coverpoint free_slot.value[5:0];
      reserved: coverpoint reserved.value[25:0];
    endgroup
    function new(string name = "slv0_free_slot_reg");
      super.new(name, 32, UVM_CVR_ALL);
      void'(set_coverage(UVM_CVR_FIELD_VALS));
      if(has_coverage(UVM_CVR_FIELD_VALS)) begin
        value_cg = new();
      end
    endfunction
    virtual function void build();
      free_slot = uvm_reg_field::type_id::create("free_slot");
      reserved = uvm_reg_field::type_id::create("reserved");
      free_slot.configure(this, 6, 0, "RO", 0, 'h20, 1, 0, 0);
      reserved.configure(this, 26, 6, "RO", 0, 'h0, 1, 0, 0);
    endfunction
endclass

slv_parity_err_reg（1位状态寄存器，slave_Node输入数据的奇偶校验结果和输入的奇偶校验位不匹配时置1）

class slv0_parity_err_reg extends uvm_reg;
    `uvm_object_utils(slv0_parity_err_reg)
    rand uvm_reg_field parity_err;
    rand uvm_reg_field reserved;
    covergroup value_cg;
      option.per_instance = 1;
      parity_err: coverpoint parity_err.value[0:0];
      reserved: coverpoint reserved.value[30:0];
    endgroup
    function new(string name = "slv0_parity_err_reg");
      super.new(name, 32, UVM_CVR_ALL);
      void'(set_coverage(UVM_CVR_FIELD_VALS));
      if(has_coverage(UVM_CVR_FIELD_VALS)) begin
        value_cg = new();
      end
    endfunction
    virtual function void build();
      parity_err = uvm_reg_field::type_id::create("parity_err");
      reserved = uvm_reg_field::type_id::create("reserved");
      parity_err.configure(this, 1, 0, "RO", 0, 'h0, 1, 0, 0);
      reserved.configure(this, 31, 1, "RO", 0, 'h0, 1, 0, 0);
    endfunction
  endclass

无论是6位的slv_freeslot寄存器，还是1位的slv_parity寄存器，都可以只声明一次类，然后通过例化创建多个寄存器对象

但是通过脚本创建寄存器的时候要将尽量统一化管理才行~

寄存器模型

class mcdf_rgm extends uvm_reg_block;
    `uvm_object_utils(mcdf_rgm)
    rand slv_en_reg slv_en;
    rand parity_err_clr_reg parity_err_clr;
    rand slv_id_reg slv_id;
    rand slv_len_reg slv_len;
    rand slv0_free_slot_reg slv0_free_slot;
    rand slv1_free_slot_reg slv1_free_slot;
    rand slv2_free_slot_reg slv2_free_slot;
    rand slv3_free_slot_reg slv3_free_slot;
    rand slv0_parity_err_reg slv0_parity_err;
    rand slv1_parity_err_reg slv1_parity_err;
    rand slv2_parity_err_reg slv2_parity_err;
    rand slv3_parity_err_reg slv3_parity_err;
    uvm_reg_map map;
    function new(string name = "mcdf_rgm");
      super.new(name, UVM_NO_COVERAGE);
    endfunction
    virtual function void build();
      slv_en = slv_en_reg::type_id::create("slv_en");
      slv_en.configure(this);
      slv_en.build();
      parity_err_clr = parity_err_clr_reg::type_id::create("parity_err_clr");
      parity_err_clr.configure(this);
      parity_err_clr.build();
      slv_id = slv_id_reg::type_id::create("slv_id");
      slv_id.configure(this);
      slv_id.build();
      slv_len = slv_len_reg::type_id::create("slv_len");
      slv_len.configure(this);
      slv_len.build();
      slv0_free_slot = slv0_free_slot_reg::type_id::create("slv0_free_slot");
      slv0_free_slot.configure(this);
      slv0_free_slot.build();
      ...//slv1，slv2，slv3
      slv0_parity_err = slv0_parity_err_reg::type_id::create("slv0_parity_err");
      slv0_parity_err.configure(this);
      slv0_parity_err.build();
      ...//slv1,slv2,slv3
      map = create_map("map", 'h0, 4, UVM_LITTLE_ENDIAN);
      map.add_reg(slv_en, 32'h00, "RW");
      map.add_reg(parity_err_clr, 32'h04, "RW");
      map.add_reg(slv_id, 32'h08, "RW");
      map.add_reg(slv_len, 32'h0C, "RW");
      map.add_reg(slv0_free_slot, 32'h80, "RO");
      map.add_reg(slv1_free_slot, 32'h84, "RO");
      map.add_reg(slv2_free_slot, 32'h88, "RO");
      map.add_reg(slv3_free_slot, 32'h8C, "RO");
      map.add_reg(slv0_parity_err, 32'h90, "RO");
      map.add_reg(slv1_parity_err, 32'h94, "RO");
      map.add_reg(slv2_parity_err, 32'h98, "RO");
      map.add_reg(slv3_parity_err, 32'h9C, "RO");
      slv_en.add_hdl_path_slice("ctrl_mem[0]", 0, 32);
      parity_err_clr.add_hdl_path_slice("ctrl_mem[1]", 0, 32);
      slv_id.add_hdl_path_slice("ctrl_mem[2]", 0, 32);
      slv_len.add_hdl_path_slice("ctrl_mem[3]", 0, 32);
      slv0_free_slot.add_hdl_path_slice("ro_mem[0]", 0, 32);
      slv1_free_slot.add_hdl_path_slice("ro_mem[1]", 0, 32);
      slv2_free_slot.add_hdl_path_slice("ro_mem[2]", 0, 32);
      slv3_free_slot.add_hdl_path_slice("ro_mem[3]", 0, 32);
      slv0_parity_err.add_hdl_path_slice("ro_mem[4]", 0, 32);
      slv1_parity_err.add_hdl_path_slice("ro_mem[5]", 0, 32);
      slv2_parity_err.add_hdl_path_slice("ro_mem[6]", 0, 32);
      slv3_parity_err.add_hdl_path_slice("ro_mem[7]", 0, 32);
      add_hdl_path("tb.dut.inst_reg_if");
      lock_model();
    endfunction
//输入通道号，返回formater要打包的长度
    function int get_reg_field_length(int ch);
      int fd;
      case(ch)
        0: fd = slv_len.slv0_len.get();
        1: fd = slv_len.slv1_len.get();
        2: fd = slv_len.slv2_len.get();
        3: fd = slv_len.slv3_len.get();
        default: `uvm_error("TYPERR", $sformatf("channel number should not be %0d", ch))
      endcase
      return fd;
    endfunction
//输入通道号，返回通道id
    function int get_reg_field_id(int ch);
      int fd;
      case(ch)
        0: fd = slv_id.slv0_id.get();
        1: fd = slv_id.slv1_id.get();
        2: fd = slv_id.slv2_id.get();
        3: fd = slv_id.slv3_id.get();
        default: `uvm_error("TYPERR", $sformatf("channel number should not be %0d", ch))
      endcase
      return fd;
    endfunction
//根据id，判断是哪个通道
    function int get_chnl_index(int ch_id);
      int fd_id;
      for(int i=0; i<4; i++) begin
        fd_id = get_reg_field_id(i);
        if(fd_id == ch_id)
          return i;
      end
      `uvm_error("CHIDERR", $sformatf("unrecognized channel ID and could not find the corresponding channel index", ch_id))
      return -1;
    endfunction
  endclass
endpackage

验证顶层

1. refmod

区别于上面没有使用寄存器模型的refmod，uvm中可以直接从寄存器模型中获取各寄存器域的值！！！

调用寄存器内部定义的任务获取数据进行打包的通道和数据包长度

rgm.get_reg_field_length(ch)

rgm.get_reg_field_id(ch)

此时只需要从

class mcdf_refmod extends uvm_component;
    mcdf_rgm rgm;
    uvm_blocking_get_peek_port #(chnl_mon_trans) in_bgpk_ports[4];
    uvm_tlm_analysis_fifo #(fmt_trans) out_tlm_fifos[4];

    `uvm_component_utils(mcdf_refmod)
    function new (string name = "mcdf_refmod", uvm_component parent);
      super.new(name, parent);
      foreach(in_bgpk_ports[i]) in_bgpk_ports[i] = new($sformatf("in_bgpk_ports[%0d]", i), this);
      foreach(out_tlm_fifos[i]) out_tlm_fifos[i] = new($sformatf("out_tlm_fifos[%0d]", i), this);
    endfunction

    function void build_phase(uvm_phase phase);
      super.build_phase(phase);
      if(!uvm_config_db#(mcdf_rgm)::get(this,"","rgm", rgm)) begin
        `uvm_fatal("GETRGM","cannot get RGM handle from config DB")
      end
    endfunction

    task run_phase(uvm_phase phase);
      fork
        do_packet(0);
        do_packet(1);
        do_packet(2);
        do_packet(3);
      join
    endtask

    task do_packet(int ch);
      fmt_trans ot;
      chnl_mon_trans it;
      forever begin
        this.in_bgpk_ports[ch].peek(it);
        ot = new();
        ot.length = rgm.get_reg_field_length(ch);
        ot.ch_id = rgm.get_reg_field_id(ch);
        ot.data = new[ot.length+3];
        foreach(ot.data[m]) begin
          if(m == 0) begin
            ot.data[m] = (ot.ch_id<<24) + (ot.length<<16);
            ot.parity = ot.data[m];
          end
          else if(m == ot.data.size()-1) begin
            ot.data[m] = ot.parity;
          end
          else begin
            this.in_bgpk_ports[ch].get(it);
            ot.data[m] = it.data;
            ot.parity ^= it.data;
          end
        end
        this.out_tlm_fifos[ch].put(ot);
      end
    endtask
  endclass: mcdf_refmod

2. scordboard

在scordboard中例化参考模型，scoreboard，monitor，refmod之间使用tlm端口或tlm管道建立连接。

do_data_compare()：发送到通道的激励

寄存器模型内部定义的get_chnl_index方法，可以根据fmt_monitor的transcation中的ch_id属性进行转换，得到这个fmt_trans是哪一个通道；

在该通道的out_tlm_fifo中取出打包好的fmt_trans和fmt_tlm_fifo中的trans进行对比

class mcdf_checker extends uvm_scoreboard;
    local int err_count;
    local int total_count;
    local int chnl_count[4];
    local virtual chnl_intf chnl_vifs[4];
    local virtual mcdf_intf mcdf_vif;
    local mcdf_refmod refmod;
    mcdf_rgm rgm;

    uvm_tlm_analysis_fifo #(chnl_mon_trans) chnl_tlm_fifos[4];
    uvm_tlm_analysis_fifo #(fmt_trans) fmt_tlm_fifo;

    uvm_blocking_get_port #(fmt_trans) exp_bg_ports[4];

    `uvm_component_utils(mcdf_checker)

    function new (string name = "mcdf_checker", uvm_component parent);
      super.new(name, parent);
      this.err_count = 0;
      this.total_count = 0;
      foreach(this.chnl_count[i]) this.chnl_count[i] = 0;
      foreach(chnl_tlm_fifos[i]) chnl_tlm_fifos[i] = new($sformatf("chnl_tlm_fifos[%0d]", i), this);
      fmt_tlm_fifo = new("fmt_tlm_fifo", this);
      foreach(exp_bg_ports[i]) exp_bg_ports[i] = new($sformatf("exp_bg_ports[%0d]", i), this);
    endfunction

    function void build_phase(uvm_phase phase);
      super.build_phase(phase);
      // get virtual interface
      if(!uvm_config_db#(virtual mcdf_intf)::get(this,"","mcdf_vif", mcdf_vif)) begin
        `uvm_fatal("GETVIF","cannot get vif handle from config DB")
      end
      foreach(chnl_vifs[i]) begin
        if(!uvm_config_db#(virtual chnl_intf)::get(this,"",$sformatf("chnl_vifs[%0d]",i), chnl_vifs[i])) begin
          `uvm_fatal("GETVIF","cannot get vif handle from config DB")
        end
      end
      if(!uvm_config_db#(mcdf_rgm)::get(this,"","rgm", rgm)) begin
        `uvm_fatal("GETRGM","cannot get RGM handle from config DB")
      end
      this.refmod = mcdf_refmod::type_id::create("refmod", this);
    endfunction

    function void connect_phase(uvm_phase phase);
      super.connect_phase(phase);
      foreach(refmod.in_bgpk_ports[i]) refmod.in_bgpk_ports[i].connect(chnl_tlm_fifos[i].blocking_get_peek_export);
      foreach(exp_bg_ports[i]) begin
        exp_bg_ports[i].connect(refmod.out_tlm_fifos[i].blocking_get_export);
      end
    endfunction

    task run_phase(uvm_phase phase);
      fork
        this.do_channel_disable_check(0);
        this.do_channel_disable_check(1);
        this.do_channel_disable_check(2);
        this.do_channel_disable_check(3);
        this.do_data_compare();
      join
    endtask

    task do_data_compare();
      fmt_trans expt, mont;
      bit cmp;
      int ch_idx;
      forever begin
        this.fmt_tlm_fifo.get(mont);
        ch_idx = this.rgm.get_chnl_index(mont.ch_id);
        this.exp_bg_ports[ch_idx].get(expt);
        cmp = mont.compare(expt);
        this.total_count++;
        this.chnl_count[ch_idx]++;
        if(cmp == 0) begin
          this.err_count++; #1ns;
          `uvm_info("[CMPERR]", $sformatf("monitored formatter data packet:\n %s", mont.sprint()), UVM_MEDIUM)
          `uvm_info("[CMPERR]", $sformatf("expected formatter data packet:\n %s", expt.sprint()), UVM_MEDIUM)
          `uvm_error("[CMPERR]", $sformatf("%0dth times comparing but failed! MCDF monitored output packet is different with reference model output", this.total_count))
        end
        else begin
          `uvm_info("[CMPSUC]",$sformatf("%0dth times comparing and succeeded! MCDF monitored output packet is the same with reference model output", this.total_count), UVM_LOW)
        end
      end
    endtask

    task do_channel_disable_check(int id);
      forever begin
        @(posedge this.mcdf_vif.clk iff (this.mcdf_vif.rstn && this.mcdf_vif.mon_ck.chnl_en[id]===0));
        if(this.chnl_vifs[id].mon_ck.ch_valid===1 && this.chnl_vifs[id].mon_ck.ch_wait===0)
          `uvm_error("[CHKERR]", "ERROR! when channel disabled, wait signal low when valid high")
      end
    endtask

    function void report_phase(uvm_phase phase);
      string s;
      super.report_phase(phase);
      s = "\n---------------------------------------------------------------\n";
      s = {s, "CHECKER SUMMARY \n"};
      s = {s, $sformatf("total comparison count: %0d \n", this.total_count)};
      foreach(this.chnl_count[i]) s = {s, $sformatf(" channel[%0d] comparison count: %0d \n", i, this.chnl_count[i])};
      s = {s, $sformatf("total error count: %0d \n", this.err_count)};
      foreach(this.chnl_tlm_fifos[i]) begin
        if(this.chnl_tlm_fifos[i].size() != 0)
          s = {s, $sformatf("WARNING:: chnl_tlm_fifos[%0d] is not empty! size = %0d \n", i, this.chnl_tlm_fifos[i].size())};
      end
      if(this.fmt_tlm_fifo.size() != 0)
          s = {s, $sformatf("WARNING:: fmt_tlm_fifo is not empty! size = %0d \n", this.fmt_tlm_fifo.size())};
      s = {s, "---------------------------------------------------------------\n"};
      `uvm_info(get_type_name(), s, UVM_LOW)
    endfunction
  endclass: mcdf_checker

1. MCDF设计更新

1.1 结构更新

1.2 接口变化

slave node接口

register接口(AMBA APB标准总线)

formatter接口

1.3 时序更新

slave node接口时序

formatter数据包格式以及接口时序

寄存器更新

1.4 设计代码

slave_node

arbiter

formater

2. UVM验证环境更新策略

2.1 组件更新

2.2 环境更新

2.3 测试更新

2.4 环境复用和序列复用

3. VIP

3.1 APB的VIP

transcation 和 sequence

apb_transfer.sv

底层apb_master_sequence

apb_test

apb_base_test_sequence

apb_single_transaction_sequence类

3.2 APB协议的断言检查和断言覆盖率

断言检查：

断言覆盖率

仿真命令

执行结果

assertion

日志

assertion波形

covergroup

cover directives

4. 项目验证代码

寄存器模型（python生成）

验证顶层

1. refmod

2. scordboard

`apb_single_transaction_sequence`类
